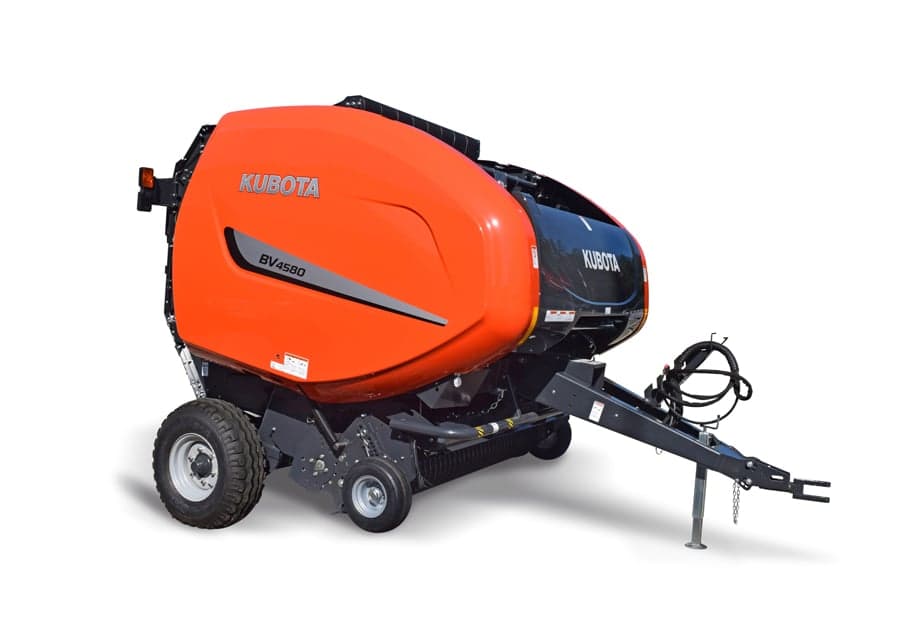

BV4580 Prem/PremNet
Call for Pricing
Designed to produce high quality and high density 5'x6' bales, Kubota’s BV4580 models are equipped to handle all types of crops and can take on the most demanding field conditions. Along with proven durable design, Kubota's 5'x6' balers offer a variety of hard-working standard features, including silage capability. The heavy duty 86” working width and low profile design diminish crop loss and increase your hay yields.
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
0% APR available or save with cash discount on your new Kubota BV Series!
BALER SERIES
Specifications
1 1/4" Main Drive Chain
1 Main Chain
Bale Formation
Bale Ramp
Bale Width in.
Binding
Cam Clutch Protection
Diameter Max in.
Diameter Min in.
Flare to Flare Pickup
Focus Terminal
Height in.
Hydraulic Outlets
ISOBUS
IsoMatch Tellus
Length in.
Lift
Lift Protection
Minimum PTO Horsepower Required HP/KW
Monitor
Number of Bars
Number of Tine Rows
PTO Protection
PTO rpm
Pneumatic Gauge Wheel
Protection, Cam Clutch
Rotor Feeder
Shear Bolt Protection
Tine Spacing in.
Twine
Types of Belts
Weight lbs. (kg)
Wheels and Axles | 14L-16.1SL
Wheels and Axles | 16.5-16.1SL
Wide Angle PTO Shaft
Width in.
Windguard
Working Width in.
1 1/4" Main Drive Chain
Standard
1 Main Chain
100
Bale Formation
8 belts + 3 rollers
Bale Ramp
Standard
Bale Width in.
62"
Binding
Net/Twine
Cam Clutch Protection
Standard
Diameter Max in.
71"
Diameter Min in.
24"
Flare to Flare Pickup
86
Focus Terminal
Standard
Height in.
112"
Hydraulic Outlets
1SA + 1DA
ISOBUS
Optional
IsoMatch Tellus
Optional
Length in.
176"
Lift
Hydraulic
Lift Protection
Radial Clutch
Minimum PTO Horsepower Required HP/KW
70
Monitor
Focus
Number of Bars
5
Number of Tine Rows
160
PTO Protection
Slipclutch
PTO rpm
540
Pneumatic Gauge Wheel
Standard
Protection, Cam Clutch
Standard
Rotor Feeder
Standard
Shear Bolt Protection
Standard
Tine Spacing in.
2.36"
Twine
Double arm / NA
Types of Belts
Mato Plate
Weight lbs. (kg)
7275 / 7175
Wheels and Axles | 14L-16.1SL
Standard
Wheels and Axles | 16.5-16.1SL
Optional
Wide Angle PTO Shaft
Standard
Width in.
116"
Windguard
Roller wind guard
Working Width in.
86"
